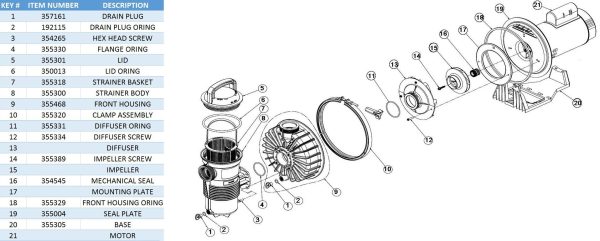

Parts Diagram
Click parts diagram above to enlarge.
Pentair Challenger High Pressure Pool Pump parts listed below. If you have any questions regarding parts for this pump or don’t see the parts you need listed, please call 1.866.593.6974
Showing all 32 results
-
Screw 5/16 Inch (in) , 18 x 3/4 Inch (in) SS hex washer head
Key: 3
SKU: 354265
$6.20 Read more -

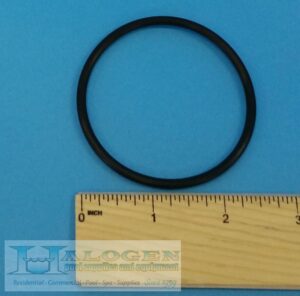

Challenger O-Ring for Strainer Pot Flange
Key: 4
SKU: 355330
$6.00 Add to cart -
Challenger Lid for Strainer Pot
Key: 5
SKU: 355301
$95.74 Add to cart -
Pump Lid O-Ring
Key: 6
SKU: 350013
$12.45 Add to cart -

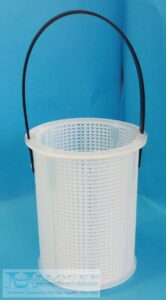

Challenger Basket for Strainer pot all models except 5 Horsepower (hp)
Key: 7
SKU: 355318
$60.86 Add to cart -

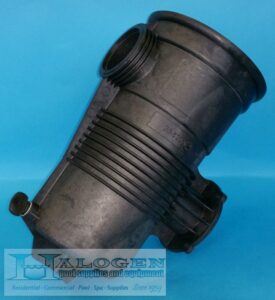

Challenger Strainer Pot
Key: 8
SKU: 355300
$208.60 Add to cart -
Challenger Front Housing
Key: 9
SKU: 355468
$211.57 Add to cart -
Housing Booster Pump
Key: 9
SKU: 355302
$293.74 Read more -
Challenger Band Clamp Assembly complete with knob
Key: 10
SKU: 355320
$118.98 Add to cart -
Challenger Diffuser O-ring for Challenger High Pressure Pumps
Key: 11
SKU: 355331
$6.21 Add to cart -
Challenger Diffuser Screw
Key: 12
SKU: 355334
$8.28 Add to cart -

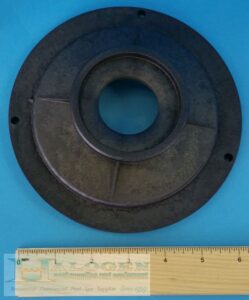

Challenger Diffuser for models: 1/2F, 3/4A
Key: 13
SKU: 355148
$43.00 Add to cart -

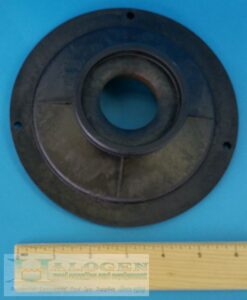

Challenger Diffuser for models: 3/4F, 1F, 1A, 1-1/2A
Key: 13
SKU: 355188
$48.06 Add to cart -
Challenger Diffuser for models: 1-1/2F, 2A
Key: 13
SKU: 355270
$49.66 Add to cart -

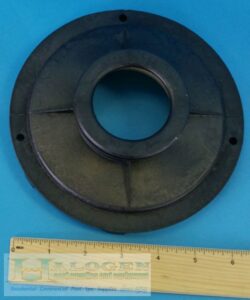

Challenger Diffuser for models: 3F, 2-1/2A, 2F
Key: 15
SKU: 355545
$82.04 Add to cart -
Challenger Impeller Locking Screw
Key: 14
SKU: 355389
$7.45 Add to cart -
Challenger Impeller for models: 1/2F, 3/4A
Key: 15
SKU: 355147
$77.92 Add to cart -
Challenger Impeller for models: 3/4F,1A, 3/4FE
Key: 15
SKU: 355187
$79.47 Add to cart -
Challenger Impeller for models: 1F, 1-1/2A
Key: 15
SKU: 355369
$84.65 Add to cart -

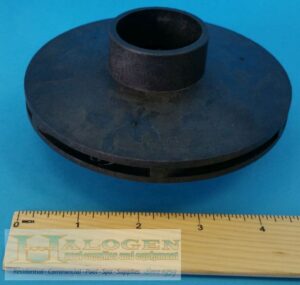

Challenger Impeller for models: 1-1/2F, 2A
Key: 15
SKU: 355315
$84.65 Add to cart -
Challenger Impeller for models: 2F, 2-1/2A
Key: 15
SKU: 355604
$88.22 Add to cart -

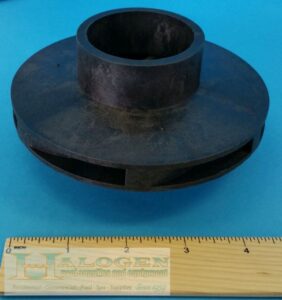

Challenger Impeller for models: 3F
Key: 15
SKU: 355544
$101.41 Add to cart -

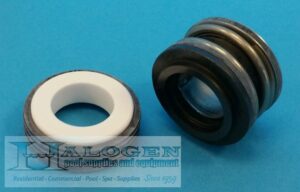

Challenger Mechanical Shaft Seal for all Challenger pumps
Key: 16
SKU: 354545S
$42.46 Add to cart -
Challenger Mounting Plate for models: 3/4F thru 3F. 1A thru 2-1/2A
Key: 17
SKU: 355317
$21.33 Add to cart -
Challenger Front Housing O-ring
Key: 18
SKU: 355329
$24.91 Add to cart -
Challenger Seal Plate
Key: 19
SKU: 355004
$144.92 Add to cart -
Challenger Base for Pump
Key: 20
SKU: 355305
$70.83 Add to cart -
Square Flange 56Y Frame Low Service Factor (Up-Rate) Motor
Key: 21
SKU: Bxxx
Price range: $363.42 through $1,572.32 Select options This product has multiple variants. The options may be chosen on the product page -
Square Flange 56Y Frame Energy Efficient High Service Factor Motor
Key: 21
SKU:
Price range: $526.32 through $1,014.46 Select options This product has multiple variants. The options may be chosen on the product page -
Square Flange 56Y Frame Three Phase High Service Factor (Full-Rate) Motor
Key: 21
SKU: Hxxx
Price range: $533.41 through $1,289.23 Select options This product has multiple variants. The options may be chosen on the product page -
Drain Plug O-Ring
Key: 2
SKU: 192115
$4.20 Add to cart -
Pentair Drain Plug 1/4 Inch (in) without O-ring
Key: 1
SKU: 357161
$8.33 Add to cart
