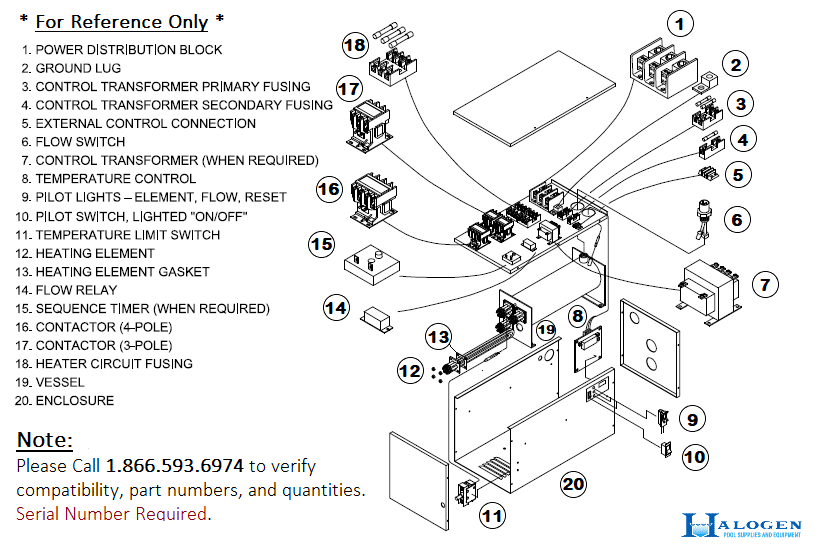

Parts Diagram
Click parts diagram above to enlarge.
Look to Halogen Supply when you need replacement parts for Coates swimming pool and spa heaters. We stock a full selection of heater elements in various sizes as well as switches, temperature controls, and fuses so you can find all the replacement parts you need in one place!
Can’t find the Coates heater replacement parts you’re looking for? Contact us and one of our knowledgeable pool experts will help you find what you need.
Showing all 27 results
-
Temperature Control (22002001) Genuine Coates OEM Replacement
SKU: 22002001
$72.00 Add to cart -
1″ Flow Switch ( 23000102 ) Genuine Coates OEM Replacement
SKU: 23000102
$155.70 Add to cart -
High Temperature Limit (22003820) Coates Genuine OEM Replacement
SKU: 22003820
$100.80 Add to cart -
Digital Temperature Control (22002150) Coates Genuine OEM Replacement
SKU: 22002150
$165.60 Add to cart -
1/2 ” Flow Switch (23000105) Coates Genuine OEM Replacement
SKU: 23000105
$99.00 Add to cart -
Relay 240 Volt for Flow Switch (21006010) Coates Genuine OEM Replacement
SKU: 21006010
$17.10 Add to cart -
Contactor 3 Pole 50 Ampere (A)/208/240 Volt (V) Coil (21001000) Coates Genuine OEM Replacement
SKU: 21001000
$163.80 Add to cart -
60 Ampere, 480 Volt, SC-60, SLC-60 Fuse (29018910) Coates Genuine OEM Replacement
SKU: 29018910
$28.80 Add to cart -
2 Ampere, 480 Volt, SC-2, SLC-2 Fuse (29019525) Coates Genuine OEM Replacement
SKU: 29019525
$23.40 Add to cart -
2 Ampere, 250 Volt, FNM-2 Fuse (29015052) Coates Genuine OEM Replacement
SKU: 29015052
$20.70 Add to cart -
Pressure Switch (22007210) Coates Genuine OEM Replacement
SKU: 22007210
$25.20 Add to cart -
5.5 Kilowatt, 240 Volt Threaded Heating Element (20005061) Coates Genuine OEM Replacement
SKU: 20005061
$76.50 Add to cart -
18 Kilowatt, 480 Volt Heating Element (20006017) Coates Genuine OEM Replacement
SKU: 20006017
$426.60 Add to cart -
15 Kilowatt (kW), 480 Volt (V) Heating Element (20006016) Coates Genuine OEM Replacement
SKU: 20006016
$426.60 Add to cart -
12 Kilowatt (kW), 480 Volt (V) Heating Element (20006015) Coates Genuine OEM Replacement
SKU: 20006015
$426.60 Add to cart -
9 Kilowatt (kW), 480 Volt (V) Heating Element (20006049) Coates Genuine OEM Replacement
SKU: 20006049
$341.10 Add to cart -
6 Kilowatt (kW), 480 Volt (V) Heating Element (20006056) Coates Genuine OEM Replacement
SKU: 20006056
$341.10 Add to cart -
18 Kilowatt (kW), 240 Volt (V) Heating Element (20006011) Coates Genuine OEM Replacement
SKU: 20006011
$426.60 Add to cart -
15 Kilowatt (kW), 240 Volt (V) Heating Element (20006010) Coates Genuine OEM Replacement
SKU: 20006010
$426.60 Add to cart -
12 Kilowatt (kW), 240 Volt (V) Heating Element (20006009) Coates Genuine OEM Replacement
SKU: 20006009
$426.60 Add to cart -
9 Kilowatt (kW), 240 Volt (V) Heating Element (20006039) Coates Genuine OEM Replacement
SKU: 20006039
$341.10 Add to cart -
6 Kilowatt (kW), 240 Volt (V) Heating Element (20006046) Coates Genuine OEM Replacement
SKU: 20006046
$341.10 Add to cart -
18 Kilowatt (kW), 208 Volt (V) Heating Element (20006005) Coates Genuine OEM Replacement
SKU: 20006005
$426.60 Add to cart -
15 Kilowatt (kW), 208 Volt (V) Heating Element (20006004) Coates Genuine OEM Replacement
SKU: 20006004
$426.60 Add to cart -
12 Kilowatt (kW), 208 Volt (V) Heating Element (20006003) Coates Genuine OEM Replacement
SKU: 20006003
$426.60 Add to cart -
9 Kilowatt (kW), 208 Volt (V) Heating Element (20006029) Coates Genuine OEM Replacement
SKU: 20006029
$341.10 Add to cart -
6 Kilowatt (kW), 208 Volt (V) Heating Element (20006036) Coates Genuine OEM Replacement
SKU: 20006036
$341.10 Add to cart
